Prime rating at rated rpm (as per ISO8528) |
kVA |
10 |
|
|---|---|---|---|
|
Kw |
8 |
||
|

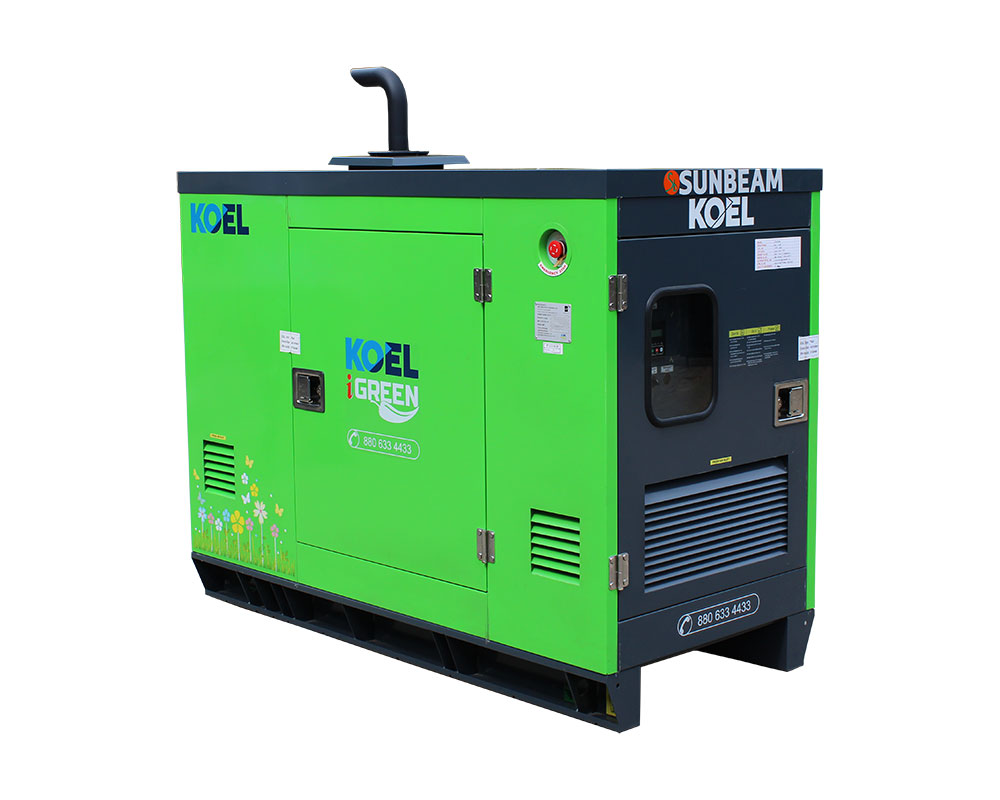

Genset Model |
|
KG1-10AS5 |
|
|
Frequency |
HZ |
50 |
|
|
Power factor |
Lagging |
0.8 |
|
|
Voltage |
V |
230(1Ø) & 415(3Ø) |
|
|
Governing class (As per ISO 8528 part-V) |
|
G2 |
|
|
Noise level |
dBA |
<75 |
|
|
Fuel Consumption* |
At 100% load |
Ltrs/Hr |
3.0 |
|
At 75% load |
2.4 |
||
|
At 50% load |
1.8 |
||
|
Fuel tank capacity |
Ltrs |
50 |
|
|
Overall dimensions of genset (LxWxH)^ |
mm |
1767x820x1328 |
|
|
Dry Weight of genset with canopy (approx..)^ |
kg |
750 |
|
|
Wet weight of genset with canopy(approx...)^ |
kg |
800 |
|
|
Electrical Battery starting voltage |
Volts-DC |
12 |
|
|
Engine Model |
|
EA16 G1 |
|---|---|---|
|
Rated output(prime Continuous rating as per ISO 8528-1) |
Kw |
11.8 |
|
Hp |
16 |
|
|
NO. of cylinder |
Number |
2 |
|
Cubic capacity2 |
Ltrs |
1.56 |
|
Bore x stroke |
Mm |
95x110 |
|
Rated speed |
RPM |
1500 |
|
Aspiration |
NA/TC/TA |
NA |
|
Lube Oil change period |
Hrs |
500 |
|
Lube oil sump capacity Max |
Ltrs |
6.5 |
|
Insulation Class |
|
Class H |
|---|---|---|
|
Altemator Efficiency (at 100% load) 0.8pf** |
% |
82.6 |
|
Max Voltage Dip at full load 0.8 pf lag |
Sec |
<20% |
|
Max Time to build up rated voltage at rated RPM |
|
< 5 sec provided engine reach the rated speed |
